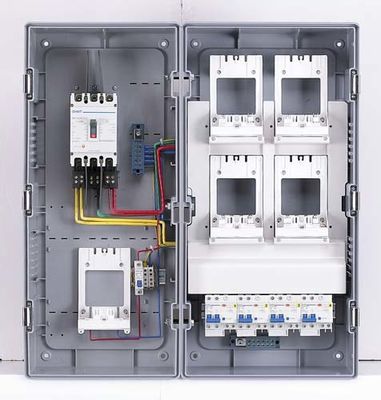

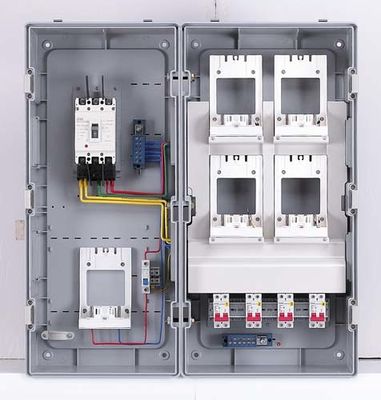

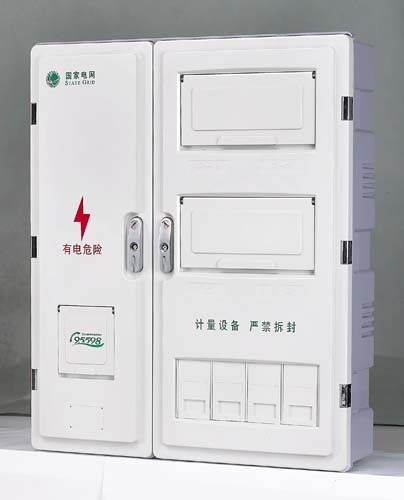

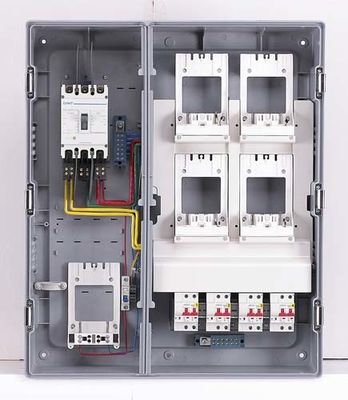

SMC Electrical Service Meter Box / Fiberglass 3 Phase Surface Mounted Meter Box

SMC Electrical Service Meter Box / Fiberglass 3 Phase Surface Mounted Meter Box
SMC Electrical Service Meter Box / Fiberglass 3 Phase Surface Mounted Meter Box SMC Electrical Service Meter Box / Fiberglass 3 Phase Surface Mounted Meter Box SMC Electrical Service Meter Box / Fiberglass 3 Phase Surface Mounted Meter Box SMC Electrical Service Meter Box / Fiberglass 3 Phase Surface Mounted Meter Box

Large Image :  SMC Electrical Service Meter Box / Fiberglass 3 Phase Surface Mounted Meter Box

Product Details:

Place of Origin: Zhejiang
Brand Name: WSELE/OEM
Certification: CCC,ISO9001,ISO14000,CE
Model Number: WS-SXD4-2X

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: According to configuration
Packaging Details: Carton
Delivery Time: 15 days after receiving payment
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 1,000,000pcs/Month
Detailed Product Description
Material: SMC/Fiberglass Application: Household,Project
Dimension: 668*800*180 Certificate: ISO9001,ISO14000,CCC,CE
Place Of Origin: Zhejiang, China (Mainland) External Size: Standard
High Light:

power meter box

,

external meter box

Fiberglass Electric Meter Box control box Single phase 4 Way Flame Retardant SMC​


Product Description


  • Ambient temperature -25°C~+50°C, and average temperature within 24 hours does not exceed +35°C
  • Clean air, daily average relative humidity does not exceed 95%, monthly mean value does not exceed 90%
  • The meter box should be installed vertically and the angle of inclination should not exceed 5°
  • The installation site should be chosen where there is no violent vibration, shock, or insufficient corrosion of electrical components
  • Because the materials used in the meter box are not resistant to alkalis, oxidizing acids, amines, and ketones, and are soluble in chlorinated hydrocarbons and aromatic solvents, they should not be used in contact with or used with these chemical substances
  • During usage, the surface of the meter box should be maintained and cleaned. Sharp objects and hard objects should be avoided from scratching the surface of the meter box
  • In order to extend the service life of the meter and the switch in the meter box, the meter box should be installed in a cool and dry place to avoid direct sunlight for a long time. It is recommended that the meter be installed indoors. The outdoor installation must select the back surface of the building and there should be shelter on the top to prevent the high wall rainwater from soaking and scouring in the event of heavy rain



Product Application:

  1. Household
  2. Electric power system
  3. Construction building
  4. China State grid

Product Advantage:

  1. Security
  2. Easy to manage
  3. Large capacity
  4. Easy to maintain
  5. Modular
  6. Embedded (built-in hinge)
  7. Nice appearance



Place of Origin:
Zhejiang, China (Mainland)
Brand Name: WSELE/OEM
Model Number: WS-SXD4-2X Material: SMC/Fiberglass
Product Name:
Electric Meter Box
Certificate: ISO9001,ISO14000,CCC,CE
Application: Household,Project OEM/ODM: Available



Program 1
Configuration Item Model Qty
Master switch configuration Plastic shell switch YCM1-125L/3300 125A 1
Connector Interference connector ( split type ) WS-CJDZ3/DZ-60 4
Output device Circuit breaker YCB6H-63/2P 63A 4

Program 2
Configuration Item Model Qty
Master switch configuration Plastic shell switch NM1-250S/3300 225A 1
Input device Disconnecting switch NH2-125/2P 100A 4
Connector Interference connector ( split type ) WS-CJDF3/DZ-60 4
Output device Circuit breaker DZ47LE-63/2P 63A 4

Program 3
Configuration Item Model Qty
Master switch configuration Plastic shell switch NM1-250S/3300 225A 1
Connector Interference connector ( split type ) WS-CJDF3/DZ-60 4
Output device Circuit breaker ZJSB9-80Z/2P 63A 4
