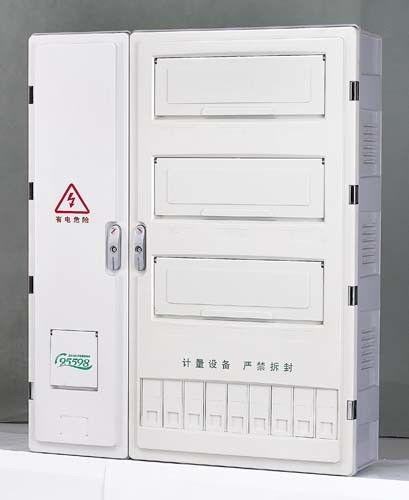

Wall Mounted External Meter Box Polycarbonate 9 Way Electric Control System

Wall Mounted External Meter Box Polycarbonate 9 Way Electric Control System
Wall Mounted External Meter Box Polycarbonate 9 Way Electric Control System Wall Mounted External Meter Box Polycarbonate 9 Way Electric Control System Wall Mounted External Meter Box Polycarbonate 9 Way Electric Control System

Large Image :  Wall Mounted External Meter Box Polycarbonate 9 Way Electric Control System

Product Details:

Place of Origin: Zhejiang,China
Brand Name: WSELE/OEM
Certification: CCC,ISO9001,ISO14000,CE
Model Number: WS-PXD9-3X

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: According to configuration
Packaging Details: Carton
Delivery Time: 15 days after receiving payment
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 1,000,000pcs/Month
Detailed Product Description
Material: Body:ABS;Cover:PC Color: Grey
Application: Household,Project DIMENSION(L/H/W): 830*1000*180
Certificate: ISO9001,ISO14000,CCC,CE Place Of Origin: Zhejiang, China (Mainland)
Protection Level: IP44 Type: Metering Box
High Light:

electric meter box cover

,

polycarbonate enclosure

Factory Polycarbonate Meter Box 8 way Single-Phase electricity meter box enclosure Static



Product Description



         WSELE Polycarbonate Meter Box series  made by raw materials of international famous brand.Advanced process technology and scientific design also ensures product durability.It is the Best choice for large-scale projects.



Product Application:

  • Household
  • Electric power system
  • Construction building
  • State Grid Standard

Product Advantage:

  • Insulative and compression-resistant
  • Easy to manage
  • Large capacity
  • Easy to maintain
  • Modular
  • Embedded (built-in hinge)
  • Nice appearance

    Meter box installation instructions

    Installation Environment

    1. Ambient temperature -25°C~+50°C, and average temperature within 24 hours does not exceed +35°C

    2. Clean air, daily average relative humidity does not exceed 95%, monthly mean value does not exceed 90%

    3. The meter box should be installed vertically and the angle of inclination should not exceed 5°

    4. The installation site should be chosen where there is no violent vibration, shock, or insufficient corrosion of electrical components

    5. Because the materials used in the meter box are not resistant to alkalis, oxidizing acids, amines, and ketones, and are soluble in chlorinated hydrocarbons and aromatic solvents, they should not be used in contact with or used with these chemical substances

    6. During usage, the surface of the meter box should be maintained and cleaned. Sharp objects and hard objects should be avoided from scratching the surface of the meter box

    7. In order to extend the service life of the meter and the switch in the meter box, the meter box should be installed in a cool and dry place to avoid direct sunlight for a long time. It is recommended that the meter be installed indoors. The outdoor installation must select the back surface of the building and there should be shelter on the top to prevent the high wall rainwater from soaking and scouring in the event of heavy rain

    Installation Instructions

    1. The fixed position used in the meter box to be fixed on the wall or on the cross pole is inside the box, so the box must be opened before installation, the two fixing screws on upper cover located under the middle of the meter box must be removed firstly, and then open the box according to the instruction here.

    2. According to the position of the installation hole, the installation hole will be made in the corresponding wall position, Then the expansion tube is placed, and fixed the base to the wall, then installed upper cover.



Place of Origin:
Zhejiang, China (Mainland)
Brand Name: WSELE/OEM
Model Number: WS-PXD9-3X Material: Body:ABS;Cover:PC
Product Name:
Metering Box
Certificate: ISO9001,ISO14000,CCC,CE
Application: Household,Project OEM/ODM: Available









Program 1
Configuration Item Model Qty
Master switch configuration Plastic shell switch YCM1-225L/3300 225A 1
Input device Disconnecting switch NH2-125/1P 100A 9
Connector Interference connector ( split type ) WS-CJDZ3/DZ-60 9
Output device Circuit breaker YCB6H-63/2P 63A 9

Program 1
Configuration Item Model Qty
Master switch configuration Plastic shell switch NM1-250S/3300 225A 1
Connector Interference connector ( split type ) WS-CJDF3/DZ-60 9
Output device Circuit breaker DZ47-63H/2P 63A 9

Program 1
Configuration Item Model Qty
Master switch configuration Plastic shell switch NM1-250S/3300 225A 1
Connector Interference connector ( split type ) WS-CJDF3/DZ-60 9
Output device Circuit breaker ZJSB9-80Z/2P 63A 9





Wall Mounted External Meter Box Polycarbonate 9 Way Electric Control System 0Wall Mounted External Meter Box Polycarbonate 9 Way Electric Control System 1
