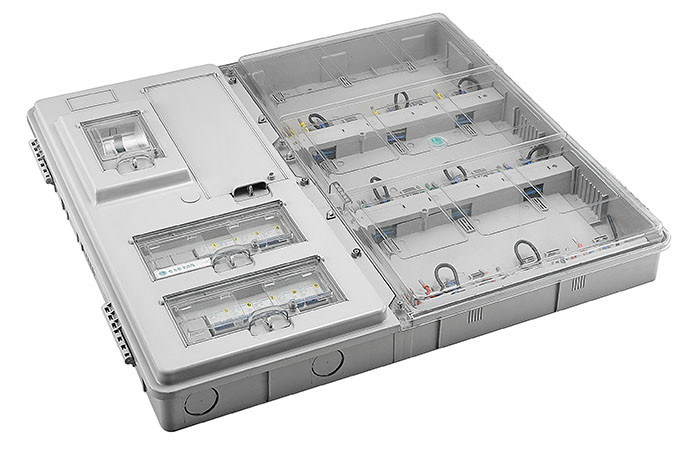

Intelligent Electrical Power Meter Box

Intelligent Electrical Power Meter Box
Intelligent Electrical Power Meter Box Intelligent Electrical Power Meter Box Intelligent Electrical Power Meter Box

Large Image :  Intelligent Electrical Power Meter Box

Product Details:

Place of Origin: Zhejiang,China
Brand Name: OEM
Certification: CCC,ISO9001,ISO14000,CE
Model Number: WS-CA16

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: According to configuration
Packaging Details: Packaging Details Carton
Delivery Time: 10 days after receiving payment
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 1,000,000pcs/Month
Detailed Product Description
Type: Distribution Box,Electric Meter Box Certificate: ISO9001,CE,CCC
Insulation: PVC Sample: Available
Colour: Gray Model Number: WS-CA16
High Light:

surface mounted electric meter box

,

electrical distribution box



Intelligient environment friendly distribution box low voltage XL cabinet





Product Descriptions:





main bus-barrated current ln: 225 A ~ 10 A

main bus-bar Rated short-time withstand current LCW: 30 KA

insulation resistance: no less than 20 m Ω

rated insulation voltage 800 V :

frequency 50Hz or 60 Hz

safety protection class IP: 43





Applications:

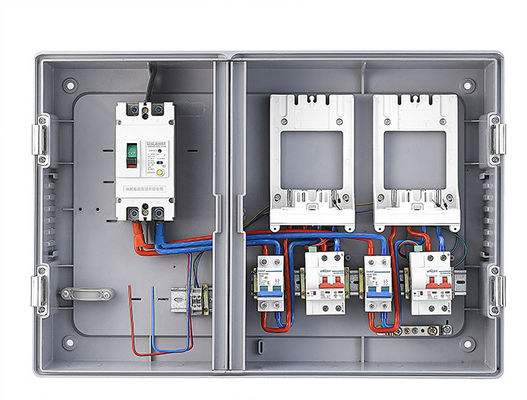

Three-phase multi-function power metering box, suitable for transformer, low voltage measurement and various kinds of three-phase power measurement requirements. Can install according to customer requirements of various kinds of electric meter, current transformer, low voltage fuse, low voltage circuit breaker, into the outlet terminals, joint the installation position of the box. The base is equipped with all kinds of installation groove, convenient installation of the original, and can be prepaid electricity meter, switch and the position of the corresponding set of IC window and switch window




Advantage:





Manufactured new type of environmental protection engineering plastics polycarbonate (PC), has high insulation performance, good performance, ultraviolet radiation resistance, ageing resistance, acid resistance, salt fog resistance, high temperature resistant, good low temperature resistance, impact resistance and other properties, and have good ventilation, rain, heat dissipation and normal service life of more than 30 years.



This series electric meter box adopts integrated design concept, will be all kinds of watt-hour meter and the entire measurement circuit closed box set in integration, not only to take up the space is little, easy to install and manage, but also can prevent power thefter hit a metering device, prevent power theft.

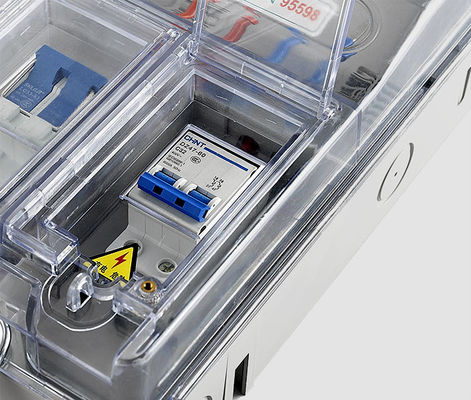

This series meter box body model beautiful, proportion, line is fluent, through the back of reserved bolt hole can be conveniently and securely installed on the concrete wall. Components in the compact structure, rational layout, the line to clear. Lid by hooks, special screws and interlock padlock with enclosure, only electric tube personnel by a special spanner and keys to open it. Glittering and translucent get rid of appears the lid .
